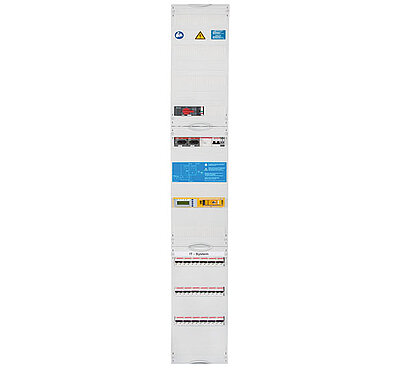

UFA/UMA710-ISO
- Device variants:
- UMA - modul without insulation fault locator (EDS)
- UFA - modul with integrated insulation fault locator (EDS)
- -BP - module with integrated baypass switch
- -RF - module for retrofit (exchange UM107)
De kant-en-klare modules worden gebruikt voor overschakeling (t <= 0,5s) tussen twee stroombronnen (SV/AV resp. BSV/SV) en voor bewaking van een IT-systeem in medische ruimten. De weergave en signalering op de meld- en bedieningseenheden verloopt via bustechnologie. De module kan op alle gangbare draagsystemen voor apparatuur worden gemonteerd. De draagsystemen kunnen bij de bestelling door de klant worden meebesteld.
- Device variants:
- UMA - modul without insulation fault locator (EDS)
- UFA - modul with integrated insulation fault locator (EDS)
- -BP - module with integrated baypass switch
- -RF - module for retrofit (exchange UM107)
De kant-en-klare modules worden gebruikt voor overschakeling (t <= 0,5s) tussen twee stroombronnen (SV/AV resp. BSV/SV) en voor bewaking van een IT-systeem in medische ruimten. De weergave en signalering op de meld- en bedieningseenheden verloopt via bustechnologie. De module kan op alle gangbare draagsystemen voor apparatuur worden gemonteerd. De draagsystemen kunnen bij de bestelling door de klant worden meebesteld.
Kenmerken
- Automatic changeover and monitoring device ATICS® including monitoring of i.e.:
- Voltage of incoming supply of Line 1 and 2
- Output voltage
- Correct operating times
- Changeover times
- Functional safety as to IEC 61508 (SIL2) - Uninterruptable testing and exchange upon optional bypass switch
- (bypass recommended)
- with insulation fault locator EDS151
- Variable changeover period t ≤0.5…15s
- Exchange of information by means of bus technology
- Connection facility for remote alarm indicator and operator panels MK2430
- Short delivery time
- Time and cost-saving handling by use of prewired distribution boards
- Screw less termination on all of the in- and outgoing connections
- Designed in accordance with the requirements of applicable standards
- Voluntary certification of changeover device by the independent German technical service, testing and inspection organization (TÜV)
UFA/UMA710-ISO Variant(en)
UFA710-2-xx-ISO, …-BP
| Type | Circuits | Nominal current (AC3) changeover module | Max. admissible current accord. to DIN VDE 0100-710 | Upstream fuse max. | Consumption ca. |
|---|---|---|---|---|---|
| UFA710-2-63-ISO-06-B16 | 6 | 63A | 63A | 80A, gG | 16W |
| UFA710-2-63-ISO-12-B16 | 12 | 63A | 63A | 80A, gG | 17W |
| UFA710-2-63-ISO-18-B16 | 18 | 63A | 63A | 80A, gG | 18W |
| UFA710-2-63-ISO-24-B16 | 24 | 63A | 63A | 80A, gG | 19W |
| UFA710-2-63-ISO-BP-06-B16 | 6 | 63A | 63A | 80A, gG | 16W |
| UFA710-2-63-ISO-BP -12-B16 | 12 | 63A | 63A | 80A, gG | 17W |
| UFA710-2-63-ISO-BP -18-B16 | 18 | 63A | 63A | 80A, gG | 18W |
| UFA710-2-63-ISO-BP -24-B16 | 24 | 63A | 63A | 80A, gG | 19W |
| UFA710-2-80-ISO-06-B16 | 6 | 80A | 80A | 100A, gG | 28W |
| UFA710-2-80-ISO-12-B16 | 12 | 80A | 80A | 100A, gG | 29W |
| UFA710-2-80-ISO-18-B16 | 18 | 80A | 80A | 100A, gG | 30W |
| UFA710-2-80-ISO-24-B16 | 24 | 80A | 80A | 100A, gG | 31W |
| UFA710-2-80-ISO-BP-06-B16 | 6 | 80A | 80A | 100A, gG | 28W |
| UFA710-2-80-ISO-BP -12-B16 | 12 | 80A | 80A | 100A, gG | 29W |
| UFA710-2-80-ISO-BP -18-B16 | 18 | 80A | 80A | 100A, gG | 30W |
| UFA710-2-80-ISO-BP -24-B16 | 24 | 80A | 80A | 100A, gG | 31W |
UMA710-2-xx-ISO, ...-BP
| Type | Nominal current (AC3) changeover module | Max. admissible current accord. to DIN VDE 0100-710 | Upstream fuse max. | Consumption ca. |
|---|---|---|---|---|
| UMA710-2-63-ISO | 63A | 63A | 80A, gG | 16W |
| UMA710-2-80-ISO | 80A | 80A<100A, gG | 28W | |
| UMA710-2-63-ISO-BP | 63A | 63A | 80A, gG | 19W |
| UMA710-2-80-ISO-BP | 80A | 80A | 100A, gG | 31W |
UMA710-2-xx-ISO-xx-RF
| Type | Nominal current (AC3) changeover module | Max. admissible current accord. to DIN VDE 0100-710 | Upstream fuse max. | Consumption ca. |
|---|---|---|---|---|
| UMA710-2-63-ISO-RF | 63 A | 63 A | 80 A, gG | 22 W |
