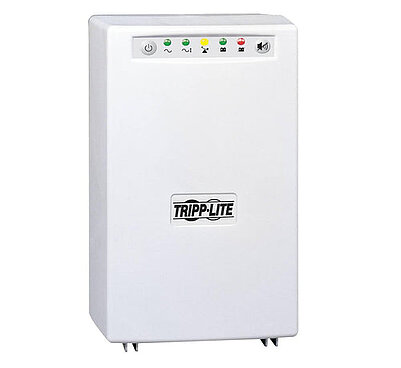

SMX700HG , Tripp Lite
- 700VA line interactive tower UPS
- Professional features include serial port, USB port, IEC320 plug & outlets, built-in isolation transformer
- Input: IEC320 C14 (230 V 3.6 A) / Output: 6 IEC320 C13 (230 V)
- Mutable alarm
- 700VA line interactive tower UPS
- Professional features include serial port, USB port, IEC320 plug & outlets, built-in isolation transformer
- Input: IEC320 C14 (230 V 3.6 A) / Output: 6 IEC320 C13 (230 V)
- Mutable alarm
Kenmerken
- Built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes
- Line-interactive voltage regulation corrects brownouts and overvoltages 155…274 V back to usable 230 V output levels, without using battery power
- Hospital-grade plug and outlets offer added degree of safety and reliability to input/output connections
- Full line isolation offers a higher degree of safety and prevents operational problems in sensitive electronic equipment
- Resistant to electrostatic discharge
- Output Volt Amp Capacity (VA) 700
- Output Watt Capacity (Watts) 450
- Nominal Output Voltage(s) Supported 220 V; 230 V; 240 V
- Nominal Voltage Details 230 V nominal inverter output voltage
- Frequency Compatibility 50/60 Hz
- Frequency Compatibility Details Automatic frequency selection
- Output Voltage Regulation (Line Mode) -18%, +8%
- Output Receptacles (6) C13
- Output AC Waveform (Battery Mode) PWM sine wave
- Supports loads up to 700 VA/450 watts
- 36 minutes half load runtime (with 350 VA load), 14.5 minutes full load runtime (with 700 VA load)
- 6 protected hospital-grade outlets; IEC C14 inlet on 6-inch dongle
- RS-232 and USB monitoring ports for remote monitoring and unattended shutdown
- PowerAlert unattended shutdown software available via free download from www.tripplite.com (cabling included)
- Complete surge protection, line isolation and EMI/RFI noise filtering
- 5 diagnostic LEDs indicate AC present, on battery, voltage correction, overload & battery low/replace
- Battery replacement door and back panel equipotential connection (grounding lug)
Toepassingen
- Ideal UPS protection for applications in medical patient-care areas where CE/ IEC 60601-1 listed medical electrical equipment is required
