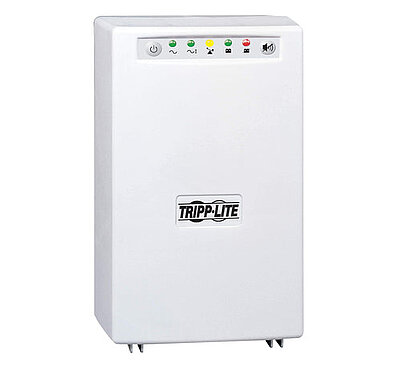

SMX1200XLHG , Tripp Lite
Beschermt kritieke in CE/IEC 60601-1 vermelde medische apparatuur in de buurt van patiëntenzorg tegen schade, stilstand en gegevensverlies door stroomuitval, stroompieken en lijnruis.
- Corrigeert onder- en overspanning van 155 V tot 274 V
- 6 IEC-320 C13 uitgangen
- Leds op frontpaneel geven laad-, vermogens-, spannings- en batterijstatus aan
- Eenmalig te gebruiken met optionele externe accupacks
- 27,5 min runtime bij halve lading, 11 min bij volle lading
Beschermt kritieke in CE/IEC 60601-1 vermelde medische apparatuur in de buurt van patiëntenzorg tegen schade, stilstand en gegevensverlies door stroomuitval, stroompieken en lijnruis.
- Corrigeert onder- en overspanning van 155 V tot 274 V
- 6 IEC-320 C13 uitgangen
- Leds op frontpaneel geven laad-, vermogens-, spannings- en batterijstatus aan
- Eenmalig te gebruiken met optionele externe accupacks
- 27,5 min runtime bij halve lading, 11 min bij volle lading
Kenmerken
- Provides AC output for electrical equipment in patient-care vicinities
- Meets strict leakage requirements for medical equipment
- Factory-muted alarm can be restored to signal loss of utility power, low battery or overload
- 6 IEC-320 C13 outlets
- 1.8 m power cord with C14 input
- 480-joule surge suppression rating
- Supports half load up to 27.5 min. and full load up to 11 min.
- Internal batteries designed for hot-swap field replacement
- Expandable runtime with optional external battery packs, such as Tripp Lite’s BP36V15-2U
- Cold-start capability enables turn-on in battery mode during blackouts
- Offers full line isolation and removes common mode noise while maintaining full AC surge suppression
- Maintains 230 V nominal output over input range of 155…274V without using battery power
- Removes electromagnetic and radio frequency interference that can disrupt or damage equipment’s performance
- Front-panel LEDs indicate line power, battery power, overload, voltage regulation and battery status
- USB and DB9 ports combine with included PowerAlert software to monitor operating conditions, monitor AC power, and enable safe unattended system shutdown and file saves in case of a prolonged power failure
- Output Volt Amp Capacity (VA) 1000
- Output Watt Capacity (Watts) 750
- Nominal Output Voltage(s) Supported 220 V; 230 V; 240 V
- Nominal Voltage Details 230 V nominal inverter output voltage
- Frequency Compatibility 50/60 Hz
- Frequency Compatibility Details : Automatic frequency selection
- Output Voltage Regulation (Line Mode) -18%, +8%
- Output Receptacles (6) C13
- Output AC Waveform (Battery Mode) PWM sine wave
Toepassingen
- Protects critical CE/IEC 60601-1 listed medical equipment in patient-care vicinities against damage, downtime and data loss due to blackouts, brownouts, power surges and line noise.
Downloads voor SMX1200XLHG , Tripp Lite
| Type | Naam | Maat | Taal | Tijdstempel | D-/B-Nummer |
|---|---|---|---|---|---|
| Handboeken | OMNIX350HG / SMX700 / SMX1200 | 1.8 MB | EN | 2019/05/13 10:31:5113.05.2019 10:31:51 | |
| Gegevensbladen | SMX1200LXHG | 61.2 KB | EN | 2019/05/13 10:31:3613.05.2019 10:31:36 | |
| Gegevensbladen | SMX1200XLHG | 495.9 KB | FR | 2019/05/13 10:31:3713.05.2019 10:31:37 |
