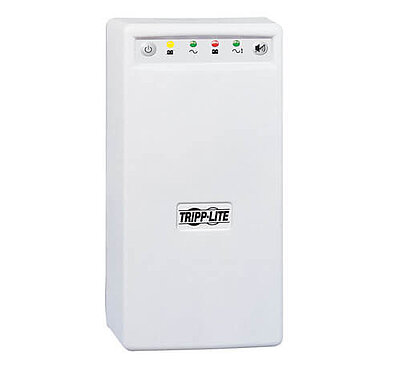

OMNIX350HG , Tripp Lite

350 VA Line-Interactive toren UPS
Professionele functies waaronder USB-poort, IEC320 stekker & uitgangen, ingebouwde isolatietransformator
Ingang: IEC320 C14 inlaat (230 V) / uitgang: 6 IEC320 C13 (230 V)
2-lijns telefoononderdrukking voor bescherming van TEL/SDL-lijn

350 VA Line-Interactive toren UPS
Professionele functies waaronder USB-poort, IEC320 stekker & uitgangen, ingebouwde isolatietransformator
Ingang: IEC320 C14 inlaat (230 V) / uitgang: 6 IEC320 C13 (230 V)
2-lijns telefoononderdrukking voor bescherming van TEL/SDL-lijn

Kenmerken

Ideal UPS protection for applications in medical patient-care areas where CE/ IEC 60601-1 electrical medical equipment is required
Line-interactive voltage regulation corrects brownouts as low as 159 V without using battery power
IEC320 plug and outlets offer added degree of safety and reliability to input/output connections
Full line isolation prevents shock potential and operational problems in sensitive electronic equipment
Resistant to electrostatic discharge
Supports loads up to 350 VA/225 watts
37 minutes half load runtime (with 175 VA load), 15.5 minutes full load runtime (with 350 VA load)
6 protected outlets; 6-inch dongle with IEC C14 inlet
C14 inlet accepts user-supplied AC power cord with grounded country-specific plug
1-USB port for monitoring interface
Complete surge protection, line isolation and EMI/RFI noise filtering
2 phone line surge suppression for modems, fax machines and other phone accessories
Complete remote monitoring cabling included, PowerAlert UPS management software available via free download

4 diagnostic LEDs indicate AC present, on battery, voltage correction & battery low/replace
Battery replacement door and back panel equipotential connection (grounding lug)
Ground Potential Equalization Connector: POAG-S6/20
Output Volt Amp Capacity (VA) 350
Output Watt Capacity (Watts) 225
Nominal Output Voltage(s) Supported 220 V; 230 V; 240 V
Nominal Voltage Details 230 V nominal inverter output voltage
Frequency Compatibility 50/60 Hz
Frequency Compatibility Details : Automatic frequency selection
Output Voltage Regulation (Line Mode) -18%, +8%
Output Receptacles (6) C13

Protects critical CE/IEC 60601-1 listed medical equipment in patient-care vicinities against damage, downtime and data loss due to blackouts, brownouts, power surges and line noise.

Type	Naam	Maat	Taal	Tijdstempel	D-/B-Nummer
Handboeken	OMNIX350HG / SMX700 / SMX1200	1.8 MB	EN	2019/05/13 10:31:5113.05.2019 10:31:51
Gegevensbladen	OMNIX350HG	61.0 KB	EN	2019/05/13 10:31:3613.05.2019 10:31:36
