ATICS®-…-DIO

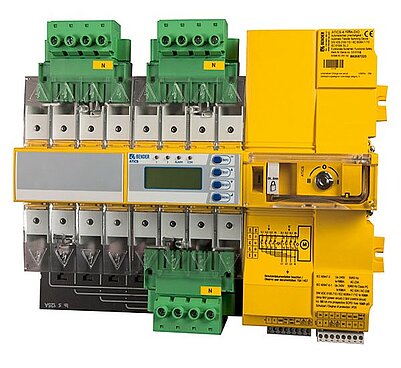

De schakelapparatuur van de reeks ATICS®-...-DIO bevat alle functies voor het omschakelen tussen twee onafhankelijke aanvoerleidingen. De integratie van de aggregaat en de elektronica in een plat, compact apparaat vermindert het ruimtebeslag in de schakelkast. minimaliseert de bedradingsinspanning en verkleint de kans op storingen. Voor optimale betrouwbaarheid is ATICS® consequent ontwikkeld volgens de richtlijnen voor functionele veiligheid (SIL 2).

Connectors op alle aansluitkabels maken in combinatie met de optionele bypass-schakelaar een ononderbroken test van de ATICS® mogelijk. In geval van service is daarom een vervanging zonder spanningsonderbreking mogelijk. Daarmee verhoogt ATICS® het veiligheidsniveau vooral in de industrie, ziekenhuizen en andere gevoelige gebieden.

Vragen? Neem contact met ons op!

ATICS®-…-DIO
ATICS®-…-DIO

De schakelapparatuur van de reeks ATICS®-...-DIO bevat alle functies voor het omschakelen tussen twee onafhankelijke aanvoerleidingen. De integratie van de aggregaat en de elektronica in een plat, compact apparaat vermindert het ruimtebeslag in de schakelkast. minimaliseert de bedradingsinspanning en verkleint de kans op storingen. Voor optimale betrouwbaarheid is ATICS® consequent ontwikkeld volgens de richtlijnen voor functionele veiligheid (SIL 2).

Connectors op alle aansluitkabels maken in combinatie met de optionele bypass-schakelaar een ononderbroken test van de ATICS® mogelijk. In geval van service is daarom een vervanging zonder spanningsonderbreking mogelijk. Daarmee verhoogt ATICS® het veiligheidsniveau vooral in de industrie, ziekenhuizen en andere gevoelige gebieden.

Vragen? Neem contact met ons op!

Kenmerken

Perfectly suitable for space-saving installation/retrofitting

  • Compact device for designing safety power supplies with functional safety more easily, in accordance with DIN VDE 61508 (SIL 2), in computing centres, industry, or in group 2 medical locations in accordance with DIN VDE 0100-710 (VDE 0100-710)/IEC 60364-7-710
  • All-in-one: Integration of switch disconnector and control electronics
  • Compact design
  • Solutions for any application


Convenient installation and commissioning

  • Saves time and money

Safe operation

  • Switch disconnector contacts of robust design
  • Mechanical locking
  • Manual operation directly on the device
  • Functional safety SIL 2
  • Certification by TÜV SÜD


Uninterrupted maintenance

  • Plug connectors and optional bypass switch
  • Excellent communication and parameterisation options

Toepassingen

  • Where sensitive electrical installations are involved, e.g. in medical locations of Group 2, industry or computing centre, safe and reliable power supply must be ensured, also in the event of malfunctions. Redundant supply lines significantly contribute to achieve safe and secure power supply.

ATICS®-…-DIO Variant(en)

ATICS®…-DIO 2-pole

TypeVersionRated operational current IeScope of deliveryArt. No.
ATICS-2-63A-DIO2-poleAC 36 A1 x STW3, bridge, connectors, terminal coverB92057212
ATICS-2-80A-DIO2-poleAC 80 A1 x STW3, bridge, connectors, terminal coverB92057213
ATICS-BP-2-63A-SETBypass switch setAC 63 ABridge, terminal cover, auxiliary contacts, LEDs green/redB92057252
ATICS-BP-2-80A-SETBypass switch setAC 80 ABridge, terminal cover, auxiliary contacts, LEDs green/redB92057253


ATICS®…-DIO 4-pole

TypeVersionRated operational current IeScope of deliveryArt. No.
ATICS-4-80A-DIO4-poleAC 80 A4 x STW3, bridge, connectors, terminal coverB92057222
ATICS-4-125A-DIO4-poleAC 125 A4 x STW4, bridge, connectors, terminal coverB92057223
ATICS-4-125A-DIO4-poleAC 160 A4 x STW4, bridge, terminal coverB92057224
ATICS-BP-4-80A-SETBypass switch setAC 80 ABridge, terminal cover, auxiliary contacts, LEDs green/redB92057260
ATICS-BP-4-125A-SETBypass switch setAC 125 ABridge, terminal cover, auxiliary contacts, LEDs green/redB92057262
ATICS-BP-4-160A-SETBypass switch setAC 160 ABridge, terminal cover, auxiliary contacts, LEDs green/redB92057264

Optionele accessoires voor ATICS®-…-DIO

TypeDescriptionArt. No.
STW3Measuring current transformer (short-circuit monitoring) for ATICS® < 100 AB98021000
STW4Measuring current transformer (short-circuit monitoring) for ATICS® < 100 AB98021001

Downloads voor ATICS®-…-DIO

NaamTypeMaatTaalTijdstempelD-/B-Nummer
Atics CE Conformiteitsverklaringen 87.7 KB 2022/08/1212.08.2022
ATICS-…-DIO Beknopte handleidingen 1.6 MB DE2021/11/2525.11.2021D00080
ATICS-…-DIO Beknopte handleidingen 1.6 MB EN2021/11/2525.11.2021D00080
ATICS-…-DIO Handboeken 5.4 MB DE2021/11/2929.11.2021D00080
ATICS-…-DIO Handboeken 4.6 MB EN2021/11/2929.11.2021D00080
ATICS-…-DIO Gegevensbladen 425.1 KB DE2021/12/0101.12.2021D00080
ATICS-…-DIO Gegevensbladen 424.3 KB EN2021/12/0101.12.2021D00080
ATICS-…-DIO Gegevensbladen 634.5 KB ES2019/05/1313.05.2019D00080
ATICS-…-DIO Checkliste Handboeken 769.3 KB DE2020/11/1313.11.2020D00080
ATICS-…-DIO Checklist Handboeken 762.0 KB EN2020/11/1313.11.2020D00080
ATICS® Informationsblatt Productbrochures 750.0 KB DE2019/05/1313.05.2019D00046, D00080
ATICS® Informationleaflet Productbrochures 743.7 KB EN2019/05/1313.05.2019D00046, D00080
ATICS-BP-SET Handboeken 2.1 MB DE2019/05/1313.05.2019D00162
ATICS-BP-SET Handboeken 2.1 MB EN2019/05/1313.05.2019D00162
ATICS®-DIO Gegevensbladen 1.2 MB IT2019/05/1313.05.2019D00080
ATICS® Kompakt. Sicher. Wirtschaftlich. Productbrochures 2.2 MB DE2023/11/0808.11.2023D00046, D00080
ATICS® Compact. Reliable. Cost-effective. Productbrochures 2.1 MB EN2023/11/0808.11.2023D00046, D00080
