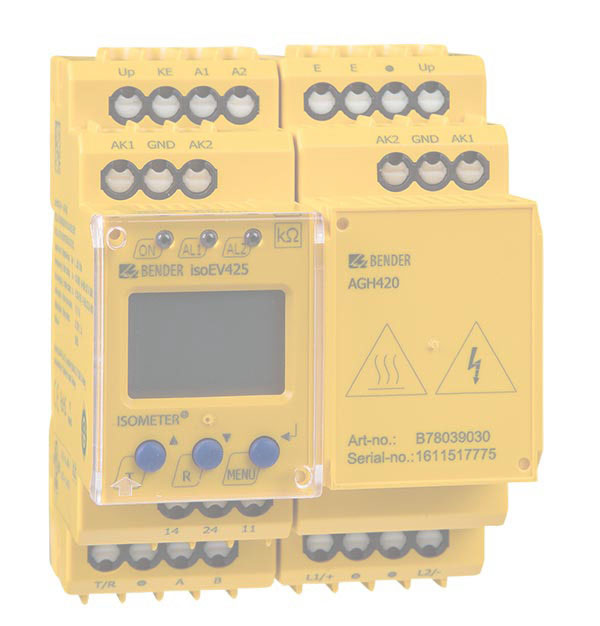

ISOMETER® isoEV425 with AGH420

  • Isolatiebewakingsapparaat voor AC-690-V- en DC-1000-V-IT-systemen
  • Voor de bewaking van DC-laadstations voor elektrische en hybride voertuigen
  • Instellingen volgens IEC 61851-23
  • Klant hoeft geen parameters in te stellen

Momenteel zijn voor de isoEV425-D4-D+AGH420 geen micro-controllers beschikbaar. Gebruik de isoCHA425HV-D4-4+AGH420-1.

De ISOMETER®'s uit de serie isoEV425 bewaken de isolatieweerstand van ongeaarde DC-laadstations voor elektrische voertuigen (IT-systemen) DC 0…1100 V van het laadstation tot de motor (AC 0…793 V).

Door de afzonderlijke voedingsspanning kan ook een spanningsloos systeem worden bewaakt.

Vragen? Neem contact met ons op!

ISOMETER® isoEV425
ISOMETER® isoEV425
  • Isolatiebewakingsapparaat voor AC-690-V- en DC-1000-V-IT-systemen
  • Voor de bewaking van DC-laadstations voor elektrische en hybride voertuigen
  • Instellingen volgens IEC 61851-23
  • Klant hoeft geen parameters in te stellen

Momenteel zijn voor de isoEV425-D4-D+AGH420 geen micro-controllers beschikbaar. Gebruik de isoCHA425HV-D4-4+AGH420-1.

De ISOMETER®'s uit de serie isoEV425 bewaken de isolatieweerstand van ongeaarde DC-laadstations voor elektrische voertuigen (IT-systemen) DC 0…1100 V van het laadstation tot de motor (AC 0…793 V).

Door de afzonderlijke voedingsspanning kan ook een spanningsloos systeem worden bewaakt.

Vragen? Neem contact met ons op!

Kenmerken

  • Monitoring for DC charging stations (mode 4 acc. to IEC 61851-23) for charging of electric vehicles
  • Measurement of the mains voltage (r.m.s.) with undervoltage and overvoltage detection
  • Measurement of DC voltages system to earth (L+/PE and L-/PE)
  • Automatic adaptation to the system leakage capacitance up to 5 μF or 20 μF
  • Automatic device self test with connection monitoring
  • Selectable start-up delay, response delay and delay on release
  • Two separately adjustable response value ranges of 1kΩ …500 kΩ (Alarm 1, Alarm 2)
  • Alarm signalling via LEDs (AL1, AL2), a display and alarm relays (K1, K2)
  • N/C operation or N/O operation of the relays selectable
  • Measured value indication via multifunctional LCD
  • Fault memory can be activated
  • RS-485 (galvanically isolated) including the following protocols:
    – BMS interface (Bender measuring device interface) for data exchange with other Bender components
    – Modbus RTU
    – IsoData (for continuous data output)
  • Password protection to prevent unauthorised parameter changes

Toepassingen

  • DC charging stations for electric vehicles according to IEC 61851-23

ISOMETER® isoEV425 with AGH420 Variant(en)

TypeSupply voltage USSystem leakage capacitance CeArt. No.*
isoEV425-D4 with AGH420AC 100…240 V, 47…63 Hz / DC 24…240 V≤ 5 μFB71036401
B91036401
isoEV425HC-D4 with AGH420AC 100…240 V, 47…63 Hz / DC 24…240 V≤ 20 μFB71036397

*(B7… = push-wire terminal / B9… = screw-type terminal)

Optionele accessoires voor ISOMETER® isoEV425 with AGH420

TypeArt. No.
Mounting clip for screw mounting (one piece per device)B98060008
Mounting frame XM420B990994
