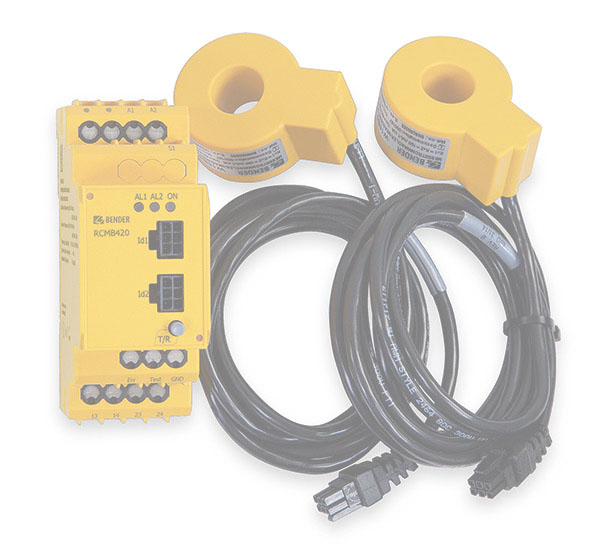

LINETRAXX® RCMB42…

- Deze apparaatserie bevindt zich in de uitdovingsfase. -
Leverbaar volgens beschikbaarheid tot 30.08.2024

Uw persoonlijke contactpersoon helpt u graag.

 Ken je onze nieuwe productgeneratie al:

Vragen? Neem contact met ons op!

LINETRAXX® RCMB42…EC
LINETRAXX® RCMB42…EC

- Deze apparaatserie bevindt zich in de uitdovingsfase. -
Leverbaar volgens beschikbaarheid tot 30.08.2024

Uw persoonlijke contactpersoon helpt u graag.

 Ken je onze nieuwe productgeneratie al:

Vragen? Neem contact met ons op!

Kenmerken

  • DC sensor with additional AC tripping (type B characteristic)
  • Response value 2 – AC/DC 30 mA: r.m.s. measurement
  • Response value 1: DC 6 mA
  • Frequency range, residual current 0…2000 Hz
  • Frequency range, load current 45…65 Hz
  • Monitoring of the connection to the measuring current transformer
  • Shielded residual current transformer to prevent the effects of external disturbances
  • Connection by means of push-wire terminals
  • Variants: Single and two-channel residual current measurement

Toepassingen

  • AC charge of electric and hybrid vehicles

LINETRAXX® RCMB42… Variant(en)

TypeMeasuring rangeFrequency
range
Number of measuring
current transformers
(ø 15 mm, 1.5 m Cable)
ChannelsSupply voltage USArt. No.
RCMB420-2DC 0…6 mA /
AC/DC 0…30 mA (r.m.s.)
0…2000 Hz22x residual currentAC 110…240 V, 50/60Hz /
DC 150…220 V
B74042500
RCMB420-25DC 0…6 mA /
AC/DC 0…30 mA (r.m.s.)
0…2000 Hz22x residual currentDC 18…36 VB74042503
RCMB422-2DC 0…6 mA /
AC/DC 0…30 mA (r.m.s.)
0…2000 Hz11x residual currentAC 110…240 V, 50/60Hz /
DC 150…220 V
B74042502
RCMB422-25DC 0…6 mA /
AC/DC 0…30 mA (r.m.s.)
0…2000 Hz11x residual currentDC 18…36 VB74042504

Delivery incl. measuring current transformers.
Measuring current transformer available with shorter cable on request (minimum order quantity 250 pcs).

Optionele accessoires voor LINETRAXX® RCMB42…

TypeArt. No.
Mounting clip for screw mounting (one piece per device)B98060008
Mounting frame XM420B990994

Downloads voor LINETRAXX® RCMB42…

NaamTypeMaatTaalTijdstempelD-/B-Nummer
We are your eMobility partner! Flyers 262.3 KB EN2023/11/2929.11.2023
RCMB42x CE Conformiteitsverklaringen 83.5 KB 2022/08/1212.08.2022
RCMB42x Handboeken 1.5 MB DE2021/08/3131.08.2021D00167
RCMB42x Handboeken 1.5 MB EN2021/08/3131.08.2021D00167
RCMB42x Beknopte handleidingen 1,008.3 KB DE2021/08/3131.08.2021D00167
RCMB42x Beknopte handleidingen 1,008.3 KB EN2021/08/3131.08.2021D00167
