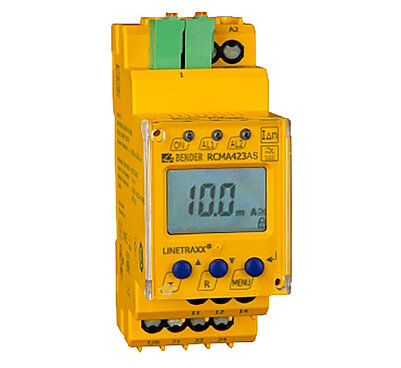

LINETRAXX® RCMA423AS
The AC/DC sensitive residual current monitor RCMA423AS is designed for use in earthed systems (TN and TT systems) where DC and AC fault currents may occur. These are in particular loads containing six-pulse rectifiers or one way rectifiers with smoothing, such as converters, battery chargers, construction site equipment with frequency-controlled drives.
Two separately adjustable response ranges allow to distinguish between prewarning (IΔn1 = 50…100 % of the set response value IΔn2) and alarm (IΔn2).
Since the values are measured with measuring current transformers, the RCMA423AS is nearly independent of the nominal voltage and the current of the system being monitored.
The AC/DC sensitive residual current monitor RCMA423AS is designed for use in earthed systems (TN and TT systems) where DC and AC fault currents may occur. These are in particular loads containing six-pulse rectifiers or one way rectifiers with smoothing, such as converters, battery chargers, construction site equipment with frequency-controlled drives.
Two separately adjustable response ranges allow to distinguish between prewarning (IΔn1 = 50…100 % of the set response value IΔn2) and alarm (IΔn2).
Since the values are measured with measuring current transformers, the RCMA423AS is nearly independent of the nominal voltage and the current of the system being monitored.
Kenmerken
- AC/DC sensitive residual current monitor Type B acc. AS/NZS 2081:2011
- r.m.s. value measurement (AC+DC)
- Two separately adjustable resp. values 100 mA...5 A
- Frequency range 0...1000 Hz
- Start-up delay, response delay and delay on release
- Digital measured value display via LC display
- Measured value memory for operating value
- CT connection monitoring
- LEDs: Power On, Alarm 1, Alarm 2
- Internal/external test/reset button
- Two separate alarm relays (one changeover contact each)
- N/O or N/C operation and fault memory selectable
- Continuous self monitoring
- Multi-functional LC display
- Password protection for device settings
- Sealable transparent cover
- Push-wire terminal (two terminals per connection)
- Two-module enclosure (36 mm)
Toepassingen
- AC/DC sensitive residual current monitoring in earthed two, three or four conductor systems (TN and TT systems)
- AC/DC sensitive residual current monitor for mining according to AS/NZS 2081:2011
- Monitoring of variable-speed drives, UPS systems, construction site equipment, printing machines, battery systems, laboratory equipment, wood working machines, MF welding systems, furniture industry,medical electrical equipment, etc.
- AC/DC sensitive current monitoring of, in the normal case, de-energised single conductors (e.g. N conductors)
LINETRAXX® RCMA423AS Variant(en)
| Type | Voedingsspanning | Response value | Art. Nr. |
|---|---|---|---|
| RCMA423AS-D-1 | AC 16…72 V, 42…460 Hz / DC 9.6…94 V | 100 mA…5 A / 0.....1000Hz | B 7404 3045 |
| RCMA423AS-D-1 | AC 70...300 V, 42 ...460 Hz / DC 70....300 V | 100 mA…5 A / 0.....1000Hz | B 7404 3046 |
Optionele accessoires voor LINETRAXX® RCMA423AS
| Type | Art. No. |
|---|---|
| Mounting clip for screw mounting (one piece per device) | B98060008 |
| Mounting frame XM420 | B990994 |
Downloads voor LINETRAXX® RCMA423AS
| Naam | Type | Maat | Taal | Tijdstempel | D-/B-Nummer |
|---|---|---|---|---|---|
| RCMA42x | CE Conformiteitsverklaringen | 88.7 KB | 2022/08/1212.08.2022 | ||
| RCMA423AS | Gegevensbladen | 375.7 KB | EN | 2022/06/0909.06.2022 | D00157 |
| Changed variants of relays from goldplated to silver-plated contacts | Technische informatie | 166.3 KB | EN | 2022/06/2727.06.2022 | |
| Geänderte Relaisvarianten von vergoldeten Kontakten auf versilberte Kontakte | Technische informatie | 166.3 KB | DE | 2022/06/2727.06.2022 |
