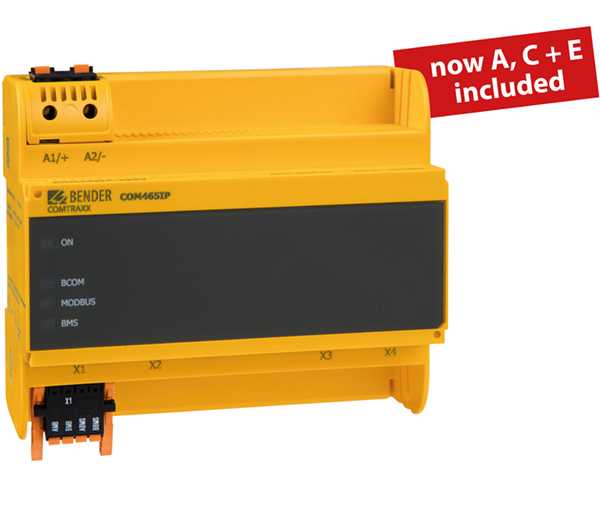

COMTRAXX® COM465IP
- Compleet systeemoverzicht
- Parametrisering van alle Bender-apparaten
- Alle Bender-communicatie-interfaces
- Weergave in webbrowser, dus geen lokale software-installatie vereist
- Individueel aan te passen aan eisen door functiemodules
Gateway met gebruiksvriendelijke en op HTML5 gebaseerde grafische gebruikersinterface COMTRAXX: Daarmee zijn apparaten gemakkelijker, uniformer en barrièrevrij te parametriseren.
De gateways COM465... zijn verkrijgbaar als basisapparaat en kunnen met functiemodules worden aangepast aan de bestaande taak. De afzonderlijke functiemodules vindt u in het gegevensblad.
- Kenmerken
- Toepassingen
- Bestelgegevens
- Downloads
- Condition Monitor for Bender systems
- Integrated modular gateway between Bender systems and TCP/IP enables remote access via LAN, WAN or the Internet
- Range of functions adjustable through function modules
- Ethernet (10/100 Mbit/s) for remote access via LAN, WAN or the Internet
- Support of devices connected to the internal or external BMS bus via BCOM, Modbus RTU or Modbus TCP
- Remote display of the latest measured values, status/alarm messages and parameters
- Gateway to Modbus TCP: Reading the latest measured values, status/alarm messages from addresses 1…10 of each interface via Modbus TCP
- Ethernet interface with 10/100 MBit/s for remote access via LAN, WAN or Internet
- Setting for internal parameters and for configuration of Bender universal measuring devices and energy meters
- Time synchronisation for all assigned devices
- History memory (20,000 entries)
- Data loggers, freely configurable (30 ∗ 10,000 entries)
- 50 data points from third-party devices (via Modbus RTU or Modbus TCP) can be integrated into the system
- A virtual device with 16 channels can be created No reports can be generated - not even for your own device.
Varianten van COMTRAXX® COM465IP
Type | Supply voltage/ frequency range US | Power consumption | Application | Art. No. |
---|---|---|---|---|
COM465IP-230V | AC/DC 24…240 V, 50…60 Hz | ≤ 6,5 VA/≤ 4 W | Condition Monitor with integrated gateway: Bender system/Ethernet | B95061065 |
Package | Art. No. |
---|---|
Function package A: Individual text messages for all devices/channels, device failure monitoring, e-mail in the event of an alarm | B75061011 |
Function package B: Modbus TCP server for max. 98 * 139 BMS nodes as well as BCOM and universal measuring devices, SNMP server | B75061012 |
Function package C: Parameter setting of BMS devices as well as BCOM and universal measuring devices | B75061013 |
Function package D: Visualisation of Bender systems, System visualisation | B75061014 |
Function module E: Virtual devices | B75061015 |
Function module F: Integration of third-party devices | B75061016 |
