LINETRAXX® PEM555

LINETRAXX® PEM555

  • Het meten van stroom, spanning, frequentie, vermogen, harmonischen, enz.
  • Met datarecorderfuncties
  • Modbus communicatie (TCP+RTU)
  • Nauwkeurigheid 0,5 S

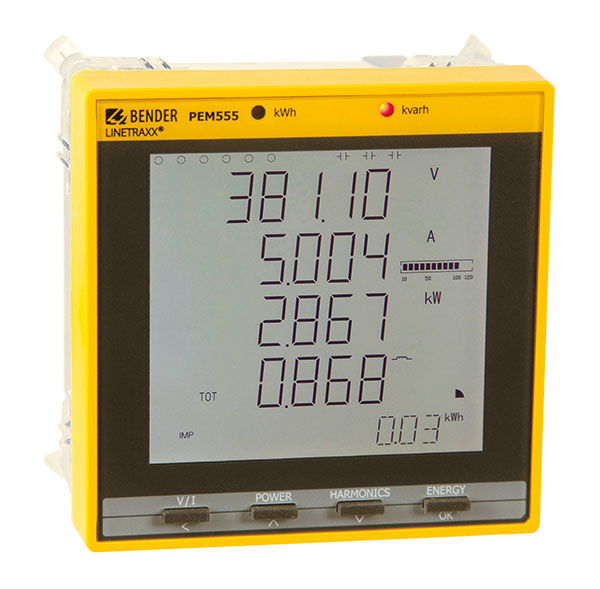

Het digitale meetinstrument PEM555 meet en toont de elektrische grootheden van een elektriciteitsnet. De omvang van de metingen varieert van stromen, spanningen, energieverbruik en prestaties tot weergave van afzonderlijke harmonischen van stroom en spanning ter beoordeling van de spanningskwaliteit. De nauwkeurigheid van de actieve verbruiksbepaling beantwoordt aan klasse 0,5 S volgens DIN EN 62053-22 (VDE 0418 deel 3-22). De stroomingangen worden via externe meetspoelen .../1 A of .../5 A aangesloten.

  • Kenmerken
  • Toepassingen
  • Accessoires
  • Bestelgegevens
  • Downloads
  • Accuracy class according to IEC 62053-22: 0.5 S
  • Measured quantities – Phase voltages UL1, UL2, UL3 in V – Line conductor voltages UL1L2, UL2L3, UL3L1 in V – Phase currents I1, I2, I3 in A – Neutral current (calculated) I0 in A – Neutral current (measured) I4 in A – Frequency f in Hz – Phase angle for U and I in ° – Power per phase conductor S in kVA, P in kW, Q in kvar – Total power S in kVA, P in kW, Q in kvar – Displacement factor cos (φ) – Power factor λ – Active and reactive energy import in kWh, kvarh – Active and reactive energy export in kWh, kvarh – Voltage unbalance in % – Current unbalance in % – Harmonic distortion (THD) for U and I – k-Factor for I
  • Programmable setpoint monitoring
  • LED pulse outputs for active and reactive energy
  • Modbus RTU and Modbus TCP
  • 3 digital outputs
  • Requirements of energy and current for particular time frames
  • Peak demands with timestamps
  • Individual, current/voltage harmonics up to the 31st harmonic
  • Minimum and maximum values
  • Waveform recording (6.4 kHz)
  • Data recorder
  • High-resolution waveform recording
  • Detection of transient events
  • As a compact device for front panel mounting, the PEM555 is a replacement for analogue indicating instruments
  • Typical application in low and medium-voltage networks (via measuring voltage transformer)
  • Power quality monitoring
  • Collection of relevant data for energy management
  • Cost allocation of energy consumption
  • High-resolution waveform recording allow analysis of power quality phenomena



Optionele accessoires voor LINETRAXX® PEM555

Window-type current transformer
DesignPrimary currentSecondary currentAccuracyTypeArt. No.
CTB416051WL60­5 KL.1B98086001
CTB416011WL60­1 KL.1B98086002
CTB417551WL75­5 KL.1B98086003
CTB417511WL75­1 KL.1B98086004
CTB4112550,5WL125­5 KL.0,5B98086005
CTB4112510,5WL125­1 KL.0,5B98086006
CTB4112551WL125­5 KL.1B98086007
CTB4112511WL125­1 KL.1B98086008
CTB4115050,5WL150­5 KL.0,5B98086009
CTB4115010,5WL150­1 KL.0,5B98086010
CTB4115051WL150­5 KL.1B98086011
CTB4115011WL150­1 KL.1B98086012
CTB4120050,5WL200­5 KL.0,5B98086013
CTB4120010,5WL200­1 KL.0,5B98086014
CTB4120051WL200­5 KL.1B98086015
CTB4120011WL200­1 KL.1B98086016
CTB4125050,5WL250­5 KL.0,5B98086017
CTB4125010,5WL250­1 KL.0,5B98086018
CTB4125051WL250­5 KL.1B98086019
CTB4125011WL250­1 KL.1B98086020
CTB4130050,5WL300­5 KL.0,5B98086021
CTB4130010,5WL300­1 KL.0,5B98086022
CTB4130051WL300­5 KL.1B98086023
CTB4130011WL300­1 KL.1B98086024
CTB4140010,5WL400­1 KL.0,5B98086025
CTB4140051WL400­5 KL.1B98086026
CTB4140050,5WL400­5 KL.0,5B98086027
CTB4140011WL400­1 KL.1B98086028
CTB4150051WL500­5 KL.1B98086029
CTB4150050,5WL500­5 KL.0,5B98086031
CTB4150011WL500­1 KL.1B98086032
CTB4150010,5WL500­1 KL.0,5B98086033
CTB5160051WL600­5 KL.1B98086034
CTB5160050,5WL600­5 KL.0,5B98086035
CTB5160011WL600­1 KL.1B98086036
CTB5160010,5WL600­1 KL.0,5B98086037
CTB5180051WL800­5 KL.1B98086038
CTB5180050,5WL800­5 KL.0,5B98086039
CTB5180011WL800­1 KL.1B98086040
CTB5180010,5WL800­1 KL.0,5B98086041
CTB51100051WL1000­5 KL.1B98086042
CTB51100050,5WL1000­5 KL.0,5B98086043
CTB51100011WL1000­1 KL.1B98086044
CTB51100010,5WL1000­1 KL.0,5B98086045

Split-core type current transformer
DesignPrimary currentSecondary currentAccuracyTypeArt. No.
KBR185013FS5WLS50­1 KL­3FS5B98086046
KBR1810013FS5WLS100­1 KL.3FS5B98086047
KBR1815013FS5WLS150­1 KL.3FS5B98086048
KBR3225013FS5WLS250­1 KL.3FS5B98086049
KBR3250013FS5WLS500­1 KL.1FS5B98086050

Varianten van LINETRAXX® PEM555


TypeInterfaceNominal system voltageCurrent inputArt. No.
PEM555RS-485/Ethernet3(N)AC 230/400 V5 AB93100555
PEM555-251RS-485/Ethernet3(N)AC 230/400 V1 AB93100556
PEM555-455RS-485/Ethernet3(N)AC 400/690 V5 AB93100557
PEM555-451RS-485/Ethernet3(N)AC 400/690 V1 AB93100558
