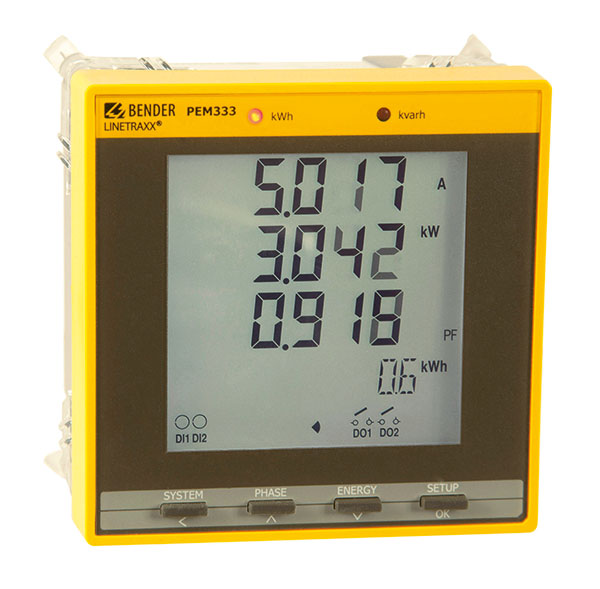

LINETRAXX® PEM333
- Het meten van stroom, spanning, frequentie, vermogen, harmonischen, enz.
- Modbuscommunicatie (RTU)
- Nauwkeurigheid 0,5 S
Het digitale meetinstrument PEM330/333 meet en toont de elektrische grootheden van een elektriciteitsnet. De metingen omvatten stomen, spanningen, energieverbruik, vermogens en zelfs totale vervormingsfactor voor beoordeling van de spanningskwaliteit. De nauwkeurigheid van de actieve verbruiksbepaling beantwoordt aan klasse 0,5 S volgens DIN EN 62053-22 (VDE 0418 deel 3-22). De stroomingangen worden via externe meetspoelen .../1 A of .../5 A aangesloten.
- Kenmerken
- Toepassingen
- Accessoires
- Bestelgegevens
- Downloads
- Accuracy class according to IEC 62053-22: 0.5 S
- Measured quantities
– Phase voltages UL1, UL2, UL3 in V
– Line voltages UL1L2, UL2L3, UL3L1 in V
– Phase currents I1, I2, I3 in A
– Neutral current (calculated) I4 in A
– Frequency f in Hz
– Phase angle for U and I in °
– Power per phase conductor S in kVA, P in kW, Q in kvar
– Total power S in kVA, P in kW, Q in kvar
– Displacement factor cos (φ)
– Power factor λ
– Active and reactive energy import in kWh, kvarh
– Active and reactive energy export in kWh, kvarh
– Voltage unbalance in %
– Current unbalance in %
– Harmonic distortion (THD) for U and I
– k-factor for I - Demands of energy and current for particular time frames
- Peak demands with timestamps
- Version PEM333
- Programmable setpoint monitoring
- 2 digital outputs
- Version PEM333-P
- Modbus RTU communication via RS-485
- 2 pulse outputs (kWh/kvarh)
- As a compact device for front panel mounting, the PEM330/333 is a replacement for analogue indicating instruments
- Typical application in low and medium-voltage networks (via measuring voltage transformer)
- Power quality monitoring
- Collection of relevant data for energy management systems
- Energy consumption allocation to cost accounting centers
Optionele accessoires voor LINETRAXX® PEM333
Window-type current transformer
Split-core type current transformer
Design | Primary current | Secondary current | Accuracy | Type | Art. No. |
---|---|---|---|---|---|
CTB41 | 60 | 5 | 1 | WL605 KL.1 | B98086001 |
CTB41 | 60 | 1 | 1 | WL601 KL.1 | B98086002 |
CTB41 | 75 | 5 | 1 | WL755 KL.1 | B98086003 |
CTB41 | 75 | 1 | 1 | WL751 KL.1 | B98086004 |
CTB41 | 125 | 5 | 0,5 | WL1255 KL.0,5 | B98086005 |
CTB41 | 125 | 1 | 0,5 | WL1251 KL.0,5 | B98086006 |
CTB41 | 125 | 5 | 1 | WL1255 KL.1 | B98086007 |
CTB41 | 125 | 1 | 1 | WL1251 KL.1 | B98086008 |
CTB41 | 150 | 5 | 0,5 | WL1505 KL.0,5 | B98086009 |
CTB41 | 150 | 1 | 0,5 | WL1501 KL.0,5 | B98086010 |
CTB41 | 150 | 5 | 1 | WL1505 KL.1 | B98086011 |
CTB41 | 150 | 1 | 1 | WL1501 KL.1 | B98086012 |
CTB41 | 200 | 5 | 0,5 | WL2005 KL.0,5 | B98086013 |
CTB41 | 200 | 1 | 0,5 | WL2001 KL.0,5 | B98086014 |
CTB41 | 200 | 5 | 1 | WL2005 KL.1 | B98086015 |
CTB41 | 200 | 1 | 1 | WL2001 KL.1 | B98086016 |
CTB41 | 250 | 5 | 0,5 | WL2505 KL.0,5 | B98086017 |
CTB41 | 250 | 1 | 0,5 | WL2501 KL.0,5 | B98086018 |
CTB41 | 250 | 5 | 1 | WL2505 KL.1 | B98086019 |
CTB41 | 250 | 1 | 1 | WL2501 KL.1 | B98086020 |
CTB41 | 300 | 5 | 0,5 | WL3005 KL.0,5 | B98086021 |
CTB41 | 300 | 1 | 0,5 | WL3001 KL.0,5 | B98086022 |
CTB41 | 300 | 5 | 1 | WL3005 KL.1 | B98086023 |
CTB41 | 300 | 1 | 1 | WL3001 KL.1 | B98086024 |
CTB41 | 400 | 1 | 0,5 | WL4001 KL.0,5 | B98086025 |
CTB41 | 400 | 5 | 1 | WL4005 KL.1 | B98086026 |
CTB41 | 400 | 5 | 0,5 | WL4005 KL.0,5 | B98086027 |
CTB41 | 400 | 1 | 1 | WL4001 KL.1 | B98086028 |
CTB41 | 500 | 5 | 1 | WL5005 KL.1 | B98086029 |
CTB41 | 500 | 5 | 0,5 | WL5005 KL.0,5 | B98086031 |
CTB41 | 500 | 1 | 1 | WL5001 KL.1 | B98086032 |
CTB41 | 500 | 1 | 0,5 | WL5001 KL.0,5 | B98086033 |
CTB51 | 600 | 5 | 1 | WL6005 KL.1 | B98086034 |
CTB51 | 600 | 5 | 0,5 | WL6005 KL.0,5 | B98086035 |
CTB51 | 600 | 1 | 1 | WL6001 KL.1 | B98086036 |
CTB51 | 600 | 1 | 0,5 | WL6001 KL.0,5 | B98086037 |
CTB51 | 800 | 5 | 1 | WL8005 KL.1 | B98086038 |
CTB51 | 800 | 5 | 0,5 | WL8005 KL.0,5 | B98086039 |
CTB51 | 800 | 1 | 1 | WL8001 KL.1 | B98086040 |
CTB51 | 800 | 1 | 0,5 | WL8001 KL.0,5 | B98086041 |
CTB51 | 1000 | 5 | 1 | WL10005 KL.1 | B98086042 |
CTB51 | 1000 | 5 | 0,5 | WL10005 KL.0,5 | B98086043 |
CTB51 | 1000 | 1 | 1 | WL10001 KL.1 | B98086044 |
CTB51 | 1000 | 1 | 0,5 | WL10001 KL.0,5 | B98086045 |
Split-core type current transformer
Design | Primary current | Secondary current | Accuracy | Type | Art. No. |
---|---|---|---|---|---|
KBR18 | 50 | 1 | 3FS5 | WLS501 KL3FS5 | B98086046 |
KBR18 | 100 | 1 | 3FS5 | WLS1001 KL.3FS5 | B98086047 |
KBR18 | 150 | 1 | 3FS5 | WLS1501 KL.3FS5 | B98086048 |
KBR32 | 250 | 1 | 3FS5 | WLS2501 KL.3FS5 | B98086049 |
KBR32 | 500 | 1 | 3FS5 | WLS5001 KL.1FS5 | B98086050 |
Varianten van LINETRAXX® PEM333
PEM333, 2DI, 2DO, RS-485 interface
PEM333-P, 2 pulse outputs, RS-485 interface
Type | Current input | Art. No |
---|---|---|
PEM333 | 5 A | B93100333 |
PEM333-251 | 1 A | B93100334 |
PEM333-P, 2 pulse outputs, RS-485 interface
Type | Current input | Art. No |
---|---|---|
PEM333-255P | 5 A | B93100335 |
PEM333-251P | 1 A | B93100336 |
