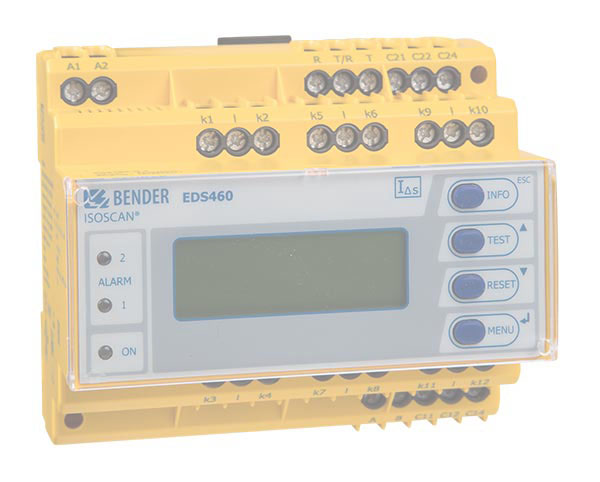

ISOSCAN® EDS460-DG
Het aardfoutzoeksysteem, voor lokalisatie van isolatiefouten, EDS461/491 wordt in combinatie met de ISOMETER® IRDH575 of de testpulsgenerator PGH gebruikt voor het lokaliseren van isolatiefouten in ongeaarde netstelsels (IT-systemen). Daartoe registreren ze met meetspoelen de testpulssignalen die door het isolatiebewakingsapparaat IRDH575 of de testpulsgenerator PGH worden gegenereerd.
Op een EDS461/491 kunnen maximaal 12 meetspoelen worden aangesloten. In totaal kunnen maximaal 90 stuks EDS461/491 via een RS-485-interface (BMS-protocol) worden verbonden, zodat maximaal 1080 uitgangen worden bewaakt. De opvraagtijd voor alle meetkanalen is max. 10 s. (zieTGH1394).
Deze uitvoering is speciaal geschikt voor netwerken met hoge netontladingscapaciteiten (20.000 µFV, zie de karakteristieken bij de technische gegevens).
Kent u onze nieuwe generatie producten al:
- Kenmerken
- Toepassingen
- Accessoires
- Bestelgegevens
- Downloads
- Insulation fault location in IT systems
- For DC IT systems (20…308 V)
- Control and display function within one device
- 12 measuring channels (circuits) for measuring current transformers of the CTAC, WR, WS series
- Up to 90 EDS evaluators in one system (1080 measuring channels)
- Scanning time max. 10 s for all measuring channels (parallel scanning)
- Response sensitivity 2…10 mA
- History memory to store 300 events
- Two alarm relays with one changeover contact each
- N/O or N/C operation, selectable
- Connection external test/reset button
- Indication via graphical display
- BMS address range 1…90
- Serial RS-485 interface
- Continuous CT connection monitoring
- Fault memory behaviour selectable
- Additional AC residual current measurement
- Insulation fault location in DC IT systems
- DC main circuits in industrial installations and ships
- Diode-decoupled DC IT systems in power stations
Optionele accessoires voor ISOSCAN® EDS460-DG
| Type | Supply voltage US | Art. No. |
|---|---|---|
| DI-1DL (interface repeater) | AC 85…260 V, 50…60 Hz | B95012047 |
| DI-2USB (interface converter RS-485/USB) | supplied by the USB port, no additional power supply required. | B95012045 |
| AN471 (power supply unit for DI-1 or DI-2) | AC 230 V 50/60 Hz/AC, DC 20 V | B924189 |
Protocol converters
| Type | Supply voltage US | Art. No. |
|---|---|---|
| COM465IP | AC/DC 24…240 V, 50…60 Hz | B95061065 |
| COM462RTU | AC/DC 76…276 V, 42…460 Hz | B95061022 |
Measuring current transformers
| Type | Inside diameter/mm | Type of construction | Art. No. |
|---|---|---|---|
| CTAC20 | ø 20 | circular | B98110005 |
| CTAC35 | ø 35 | circular | B98110007 |
| CTAC60 | ø 60 | circular | B98110017 |
| CTAC120 | ø 120 | circular | B98110019 |
| CTAC210 | ø 210 | circular | B98110020 |
| WR70x175 | 70 x 175 | rectangular | B98080609 |
| WR115x305 | 115 x 305 | rectangular | B98080610 |
| WS20x30 | 20 x 30 | split-core | B98080601 |
| WS50x80 | 50 x 80 | split-core | B98080603 |
| WS80x80 | 80 x 80 | split-core | B98080605 |
| WS80x120 | 80 x 120 | split-core | B98080606 |
| WS80x160 | 80 x 160 | split-core | B98080608 |
Alternative measuring current transformers from the Bender range
| Type | Inside diameter/mm | Type of construction | Art. No. |
|---|---|---|---|
| W10/600 | 10 | circular-type | B911761 |
| W0-S20 | 20 | circular-type | B911787 |
| W1-S35 | 35 | circular-type | B911731 |
| W2-S70 | 70 | circular-type | B911732 |
| W3-S105 | 105 | circular-type | B911733 |
| W4-S140 | 140 | circular-type | B911734 |
| W5-S210 | 210 | circular-type | B911735 |
| WR70x175S | 70x175 | rectangular | B911738 |
| WR115x305S | 115x305 | rectangular | B911739 |
| WR150x350S | 150x350 | rectangular | B911740 |
| WR200x500S | 200x500 | rectangular | B911763 |
| WS50x80S | 50x80 | split-core | B911741 |
| WS80x80S | 80x80 | split-core | B911742 |
| WS80x120S | 80x120 | split-core | B911743 |
| WS80x160S | 80x160 | split-core | B911755 |
Varianten van ISOSCAN® EDS460-DG
| Type | Supply voltage Us* | Response value | Art. No. |
|---|---|---|---|
| EDS460-DG-1 | DC 16…94 V / AC 16…72 V, 42…460 Hz | 2…10 mA | B91080018 |
| EDS460-DG-2 | AC/DC 70…276 V / AC 42…460 Hz | 2…10 mA | B91080019 |
| EDS460-DGW-1 | DC 16…94 V / AC 16…72 V, 42…460 Hz | 2…10 mA | B91080018W |
| EDS460-DGW-1 | AC/DC 70…276 V / AC 42…460 Hz | 2…10 mA | B91080019W |
EDS460-DGW.. Version for increased climatic and mechanical stresses.
