ISOMETER® isoHV525

ISOMETER® isoHV525

  • Insulating monitoring device for unearthed AC, AC/DC, and DC systems (IT systems)
  • Installations up to 3(N)AC, AC/DC 0...1000V or DC 0...1000 V
  • Two separate selectable response values
  • Automatic adaptation to the system leakage capacitance up to 150 μF
  • Alternatively with analogue output or serial interface (BMS, Modbus RTU, isoData)
  • Degree of protection IP65

The isoHV525 ISOMETER® monitors the insulation resistance of unearthed AC, AC/DC and DC systems (IT systems) with nominal system voltages of 3(N)AC, AC/DC 0…1000 V or DC 0 …1000 V. The maximum permissible system leakage capacitance Ce is 150 μF.

DC components existing in AC systems do not influence the operating characteristics, when a minimum load current of DC 100 mA flows. A separate supply voltage allows de-energised systems to be monitored too.

Please heed the limits of the area of application indicated in the technical specifications. Any use other than that described in this manual is regarded as improper.

The isoHV525 is contained in an enclosure filled with polyurethane and can therefore be used under extreme environmental conditions such as shock, vibration and temperature.

  • Kenmerken
  • Toepassingen
  • Accessoires
  • Bestelgegevens
  • Downloads

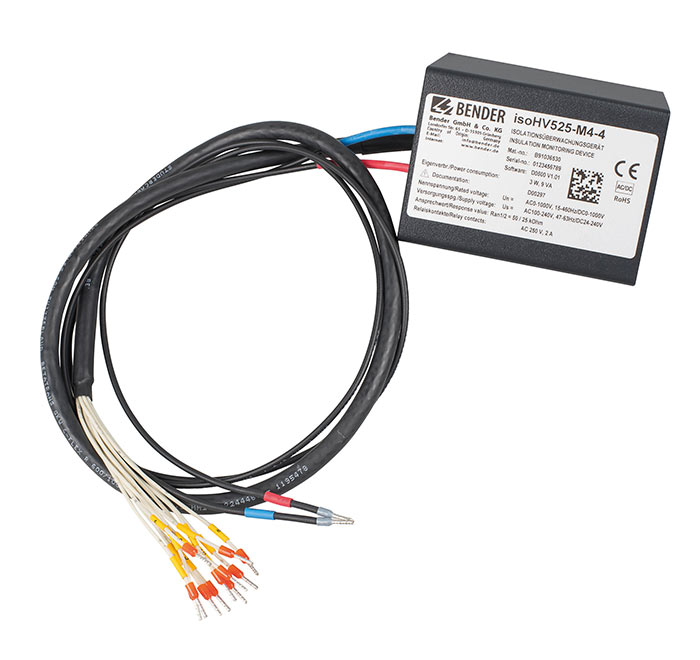

    isoHV525-M4-4
  • Monitoring the insulation resistance for unearthed AC/DC systems
  • Automatic adaptation to the system leakage capacitance up to 150 μF
  • Two separate response values for Alarm 1 and Alarm 2
  • Alarms are signalled via alarm relays (K1, K2)
  • 10 V analogue output (galvanically separated)

    isoHV525-S4-4
  • Monitoring the insulation resistance for unearthed AC/DC systems
  • Measurement of the mains voltage (true r.m.s.) with undervoltage and overvoltage detection
  • Measurement of DC system voltages to earth (L1+/PE and L2-/PE)
  • Automatic adaptation to the system leakage capacitance up to 150 μF
  • Two separate response values for Alarm 1 and Alarm 2
  • Alarms are signalled via alarm relays (K1, K2)
  • Selectable N/C or N/O relay operation
  • Selectable start-up delay, response delay and delay on release
  • Fault memory can be activated
  • RS-485 (galvanically separated) including the following protocols:
    – BMS interface (Bender measuring device interface) for data exchange with other Bender components
    – Modbus RTU
    – IsoData (for continuous data output)
  • AC main circuits up to 1000 V
  • DC main circuits up to 1000 V
  • Systems including switched-mode power supplies
  • High shock and vibration requirements
  • High temperature requirements



Varianten van ISOMETER® isoHV525


TypeVersion Art. No.
isoHV525-M4-4Analogue output B91036530
isoHV525-S4-4Serial interface B91036531
